electrical wiring diagram 2005 tacuma-rezzo 12. HAZARD & TURN SIGNAL LAMP CIRCUIT

Tacuma-Rezzo

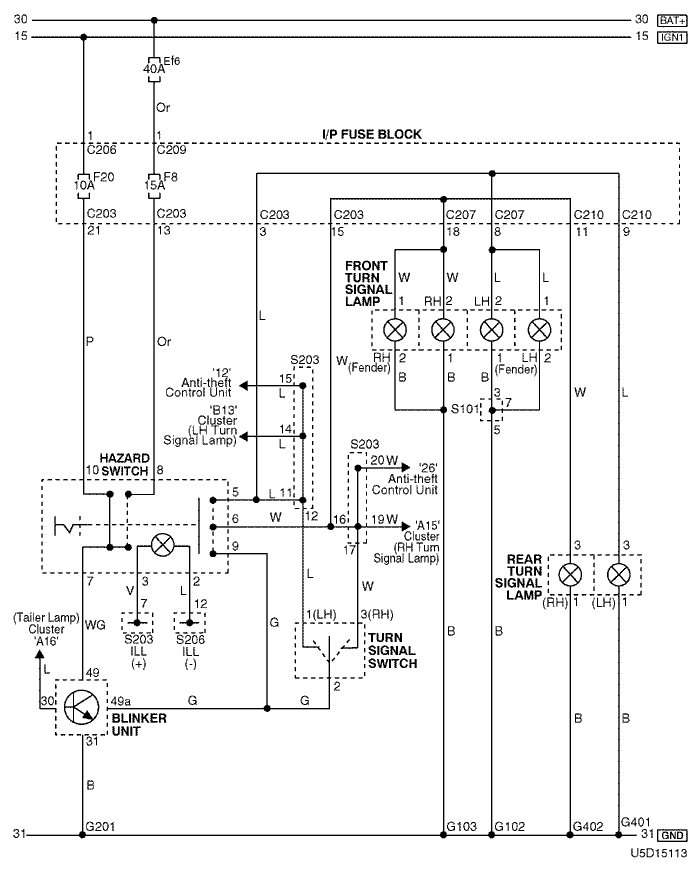

12. HAZARD & TURN SIGNAL LAMP CIRCUIT

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C203 (22 Pin, White)	I/P Fuse Block – IP	Front the I/P Fuse Block
C206 (3 Pin, Brown)	I/P Fuse Block – IP	Front the I/P Fuse Block
C207 (22 Pin, White)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C209 (1 Pin, Colorless)	I/P Fuse Block – Front	Behind the I/P Fuse Block
C210 (18 Pin, White)	I/P Fuse Block – Floor	Behind the I/P Fuse Block
S101 (White)	Front	Inside the Engine Fuse Block
S203 (Orange)	IP	Rear Center Instrument Panel
S206 (Violet)	IP	Rear Left Instrument Panel
G102	Front	Behind the Left Headlamp
G103	Front	Behind the Right Headlamp
G201	IP	Rear Right Instrument Panel
G401	Floor	Left the Trunk Room Under the Tail Lamp
G402	Floor	Right the Trunk Room Under the Tail Lamp

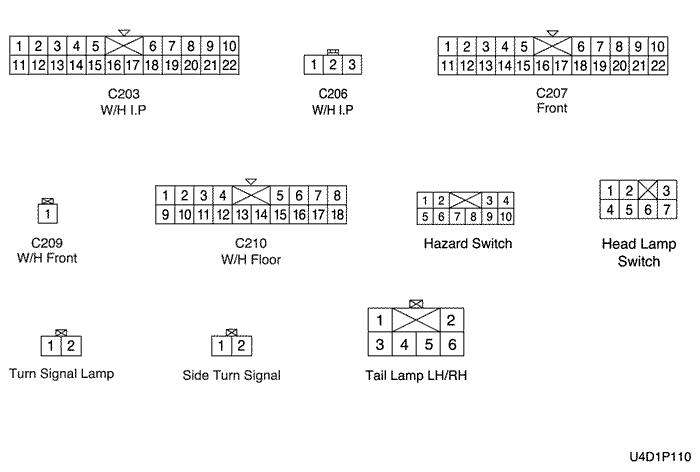

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

d. SPLICE PACK

s101

s203

s206
