10. ILLUMINATION RELAY CIRCUIT

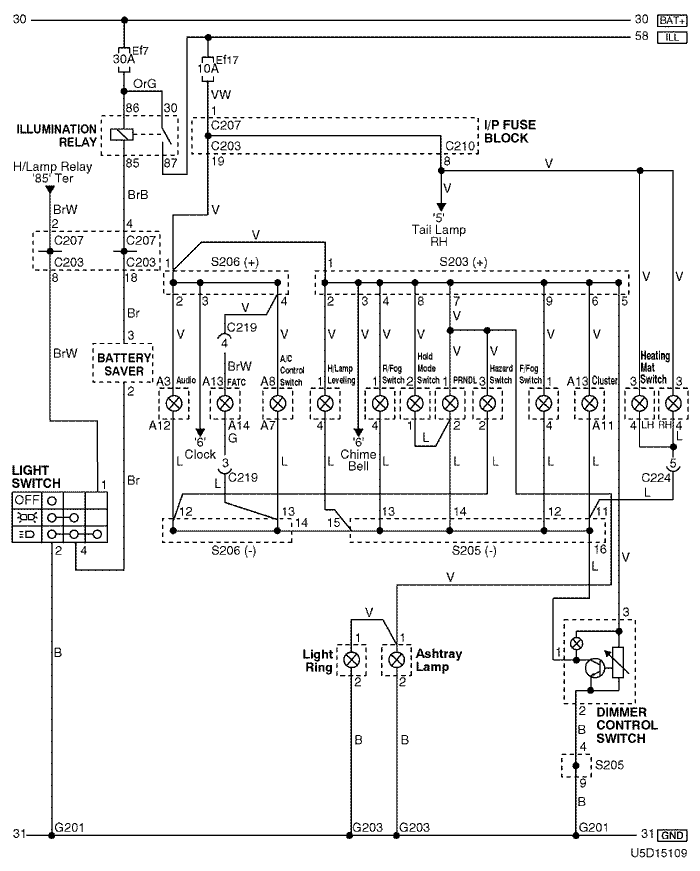

1) illumination dimmer control circuit: w/o battery saver

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C203 (22 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C207 (22 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C210 (18 Pin, White) I/P Fuse Block – Floor Behind the I/P Fuse Block
C219 (15 Pin, White) IP – FATC Upper the Evaporator Housing
C224 (14 Pin, White) IP – Floor Under the Door Lock Unit
S203 (Orange) IP Rear Center Instrument Panel
S205 (Orange) IP Rear Center Instrument Panel
S206 (Violet) IP Rear Left Instrument Panel
G201 IP Rear Right Instrument Panel
G203 IP Under Right Ashtray

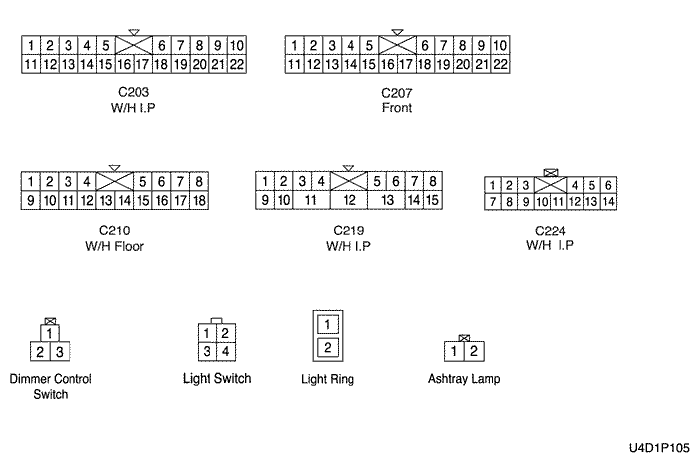

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

s203

Display graphicTranslations of text in graphics


s205

Display graphicTranslations of text in graphics


s206

Display graphicTranslations of text in graphics


2) illumination dimmer control circuit: w/ battery saver

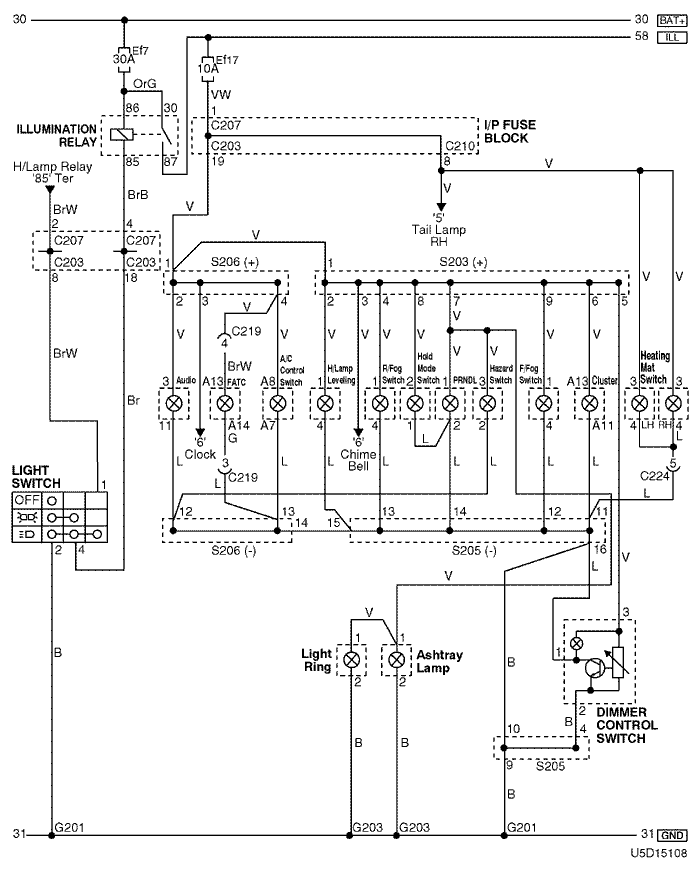

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C203 (22 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C207 (22 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C210 (18 Pin, White) I/P Fuse Block – Floor Behind the I/P Fuse Block
C219 (15 Pin, White) IP – FATC Upper the Evaporator Housing
C224 (14 Pin, White) IP – Floor Under the Door Lock Unit
S203 (Orange) IP Rear Center Instrument Panel
S205 (Orange) IP Rear Center Instrument Panel
S206 (Violet) IP Rear Left Instrument Panel
G201 IP Rear Right Instrument Panel
G203 IP Under Right Ashtray

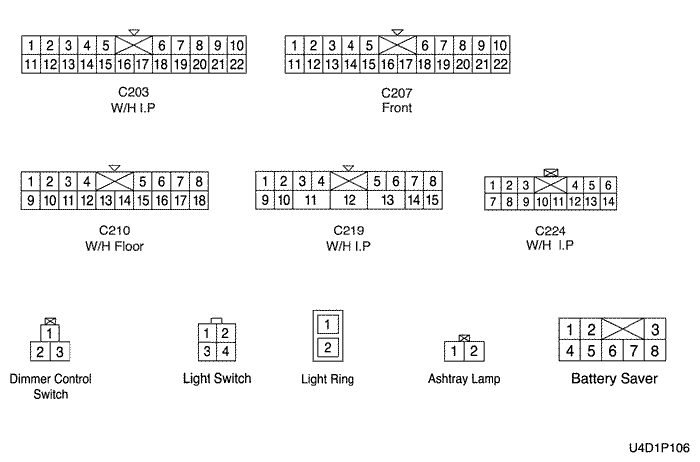

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


d. SPLICE PACK

s203

Display graphicTranslations of text in graphics


s205

Display graphicTranslations of text in graphics


s206

Display graphicTranslations of text in graphics


3) license plate, position lamp & tail lamp: w/o battery saver

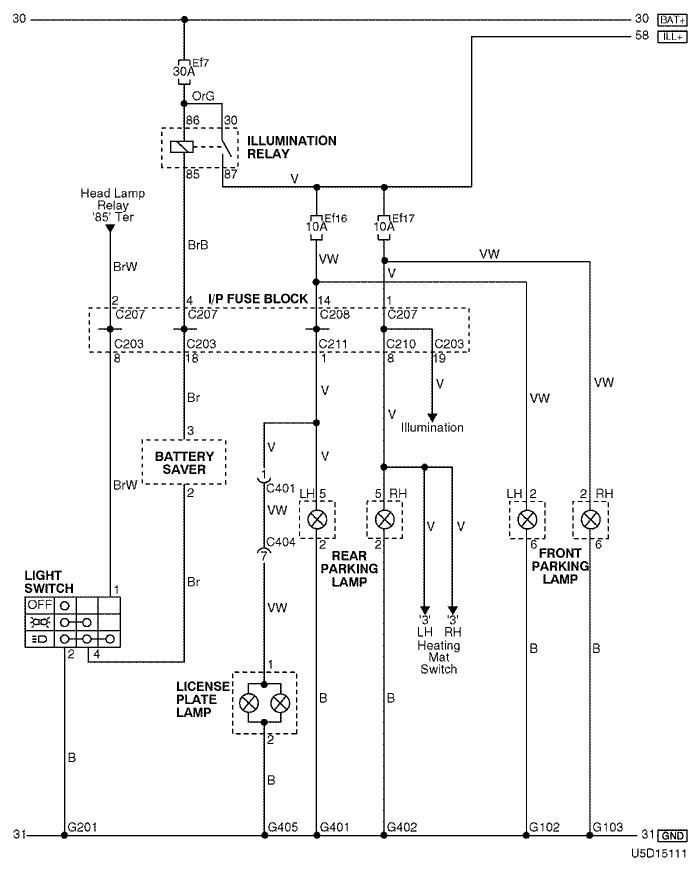

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C203 (22 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C207 (22 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C210 (18 Pin, White) I/P Fuse Block – Floor Behind the I/P Fuse Block
C211 (12 Pin, White) I/P Fuse Block – Floor Behind the I/P Fuse Block
C401 (10 Pin, White) Tailgate – Floor Behind the Rear Quarter Glass
C404 (8 Pin, White) Tailgate – Tailgate AUX Left Under Tailgate Behind the Tail Lamp
G102 Front Behind the Left Headlamp
G103 Front Behind the Right Headlamp
G201 IP Rear Right Instrument Panel
G401 Floor Left the Trunk Room Under the Tail Lamp
G402 Floor Right the Trunk Room Under the Tail Lamp
G405 Tailgate, Aux Under the Rear Wiper Motor

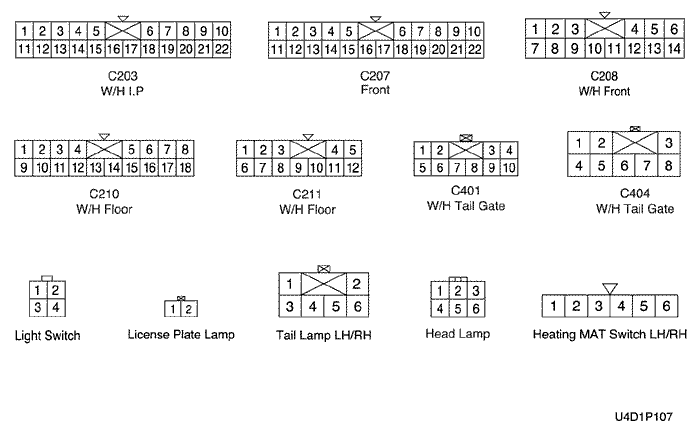

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


4) license plate, position lamp & tail lamp: w/ battery saver

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)
connecting wiring harnessconnector position
C203 (22 Pin, White) I/P Fuse Block – IP Front the I/P Fuse Block
C207 (22 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C208 (14 Pin, White) I/P Fuse Block – Front Behind the I/P Fuse Block
C210 (18 Pin, White) I/P Fuse Block – Floor Behind the I/P Fuse Block
C211 (12 Pin, White) I/P Fuse Block – Floor Behind the I/P Fuse Block
C401 (10 Pin, White) Tailgate – Floor Behind the Rear Quarter Glass
C404 (8 Pin, White) Tailgate – Tailgate AUX Left Under Tailgate Behind the Tail Lamp
G102 Front Behind the Left Headlamp
G103 Front Behind the Right Headlamp
G201 IP Rear Right Instrument Panel
G401 Floor Left the Trunk Room Under the Tail Lamp
G402 Floor Right the Trunk Room Under the Tail Lamp
G405 Tailgate, Aux Under the Rear Wiper Motor

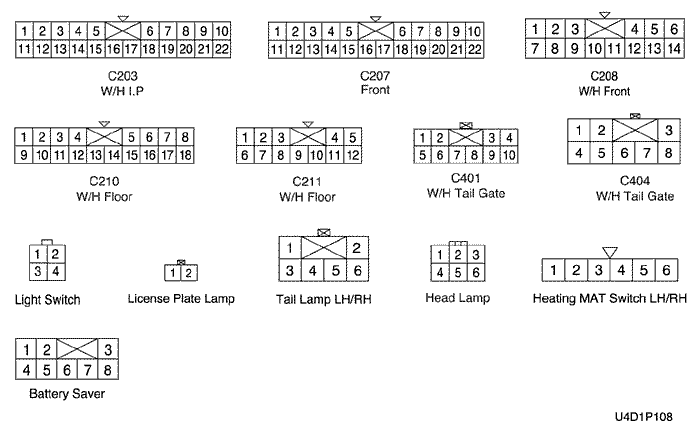

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


sm
