9. RADIATOR COOLING FAN CIRCUIT

1) cooling fan circuit (mr-140/hv-240) : dual

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C113 (16 Pin, Black) Body – Front Behind ECM Bracket
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
G101 Front Behind Left Head Lamp
G102 Front Behind Right Head Lamp
G107 Engine (MR-140/HV-240) Under Start Motor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

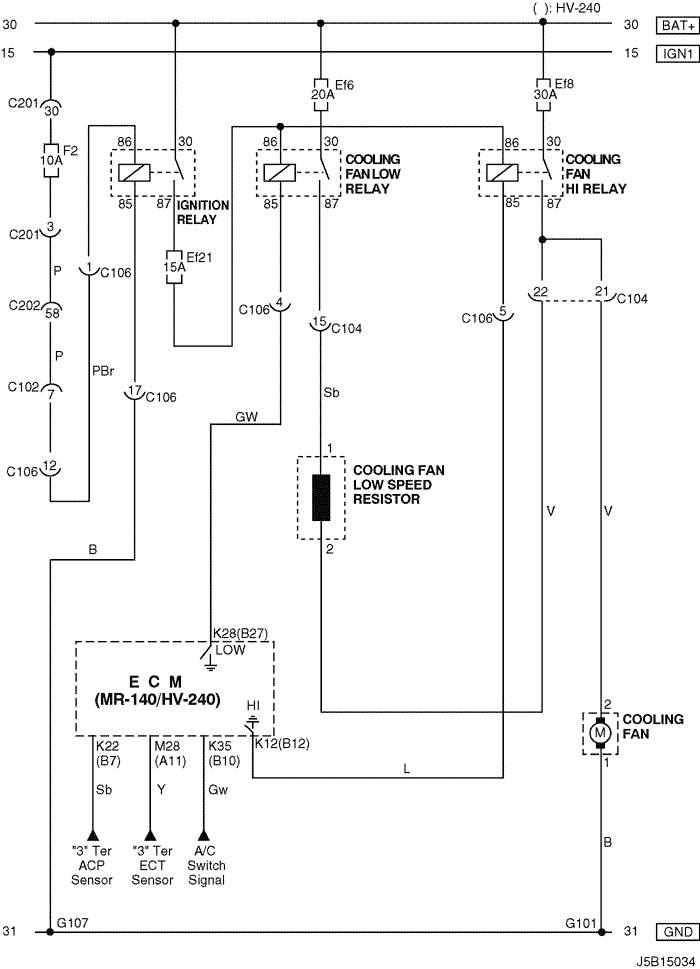

2) cooling fan circuit (mr-140/hv-240) : single

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
G101 Front Behind Left Head Lamp
G107 Engine (MR-140/HV-240) Under Start Motor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

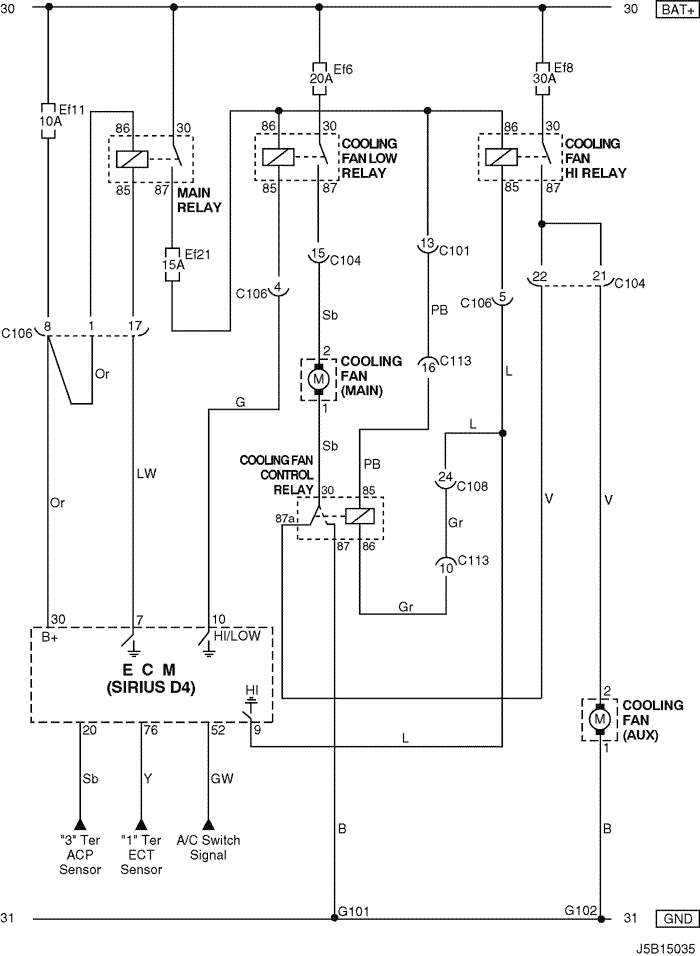

3) cooliing fan circuit (sirius d4) : dual

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C113 (16 Pin, Black) Body – Front Behind ECM Bracket
G101 Front Behind Left Head Lamp
G102 Front Behind Right Head Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

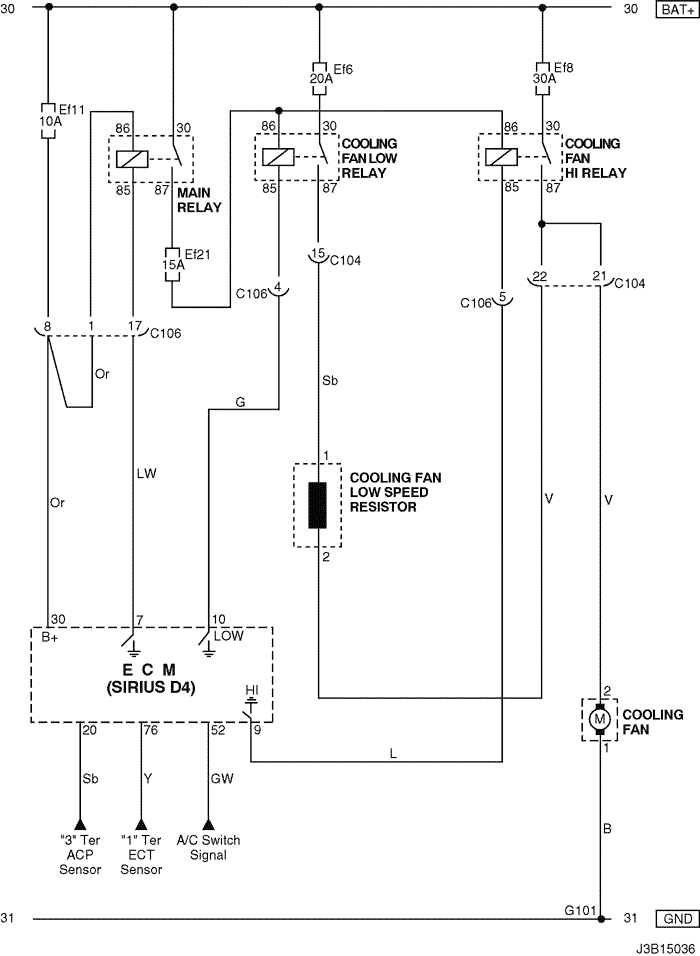

4) cooliing fan circuit (sirius d4) : single

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C113 (16 Pin, Black) Body – Front Behind ECM Bracket
G101 Front Behind Left Head Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics
