7. AIR CONDITIONER

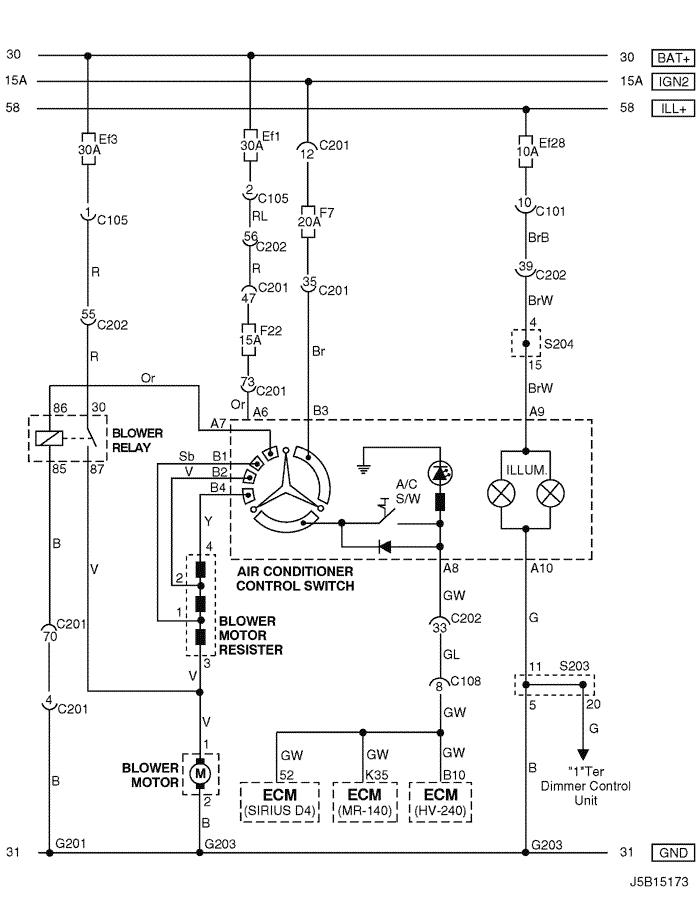

1) air conditioner control switch, blower motor resister & blower motor circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C108 (24 Pin, Black) | Body – Engine | Left Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G201 | I.P | Left I.P Fuse Block |
| G203 | I.P | Behind Left Audio Bracket |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s203
s204
2) air conditioner control switch, intake motor & air conditioner compressor circuit
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C104 (24 Pin, White) | Front – Engine Fuse Block | Engine Fuse Block |
| C106 (20 Pin, White) | Engine – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| S203 (Red) | I.P | Behind Audio Mounting |
| G102 | Front | Behind Right Head Lamp |
| G203 | I.P | Behind Left Audio Bracket |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s203
sm
