Nubira-Lacetti
To Previous PageTo Next Page
GMDE Start PageLoad static TOCLoad dynamic TOCHelp?



4. ECM (ENGINE CONTROL MODULE) : SIRIUS D4

1) battery power supply, ground, ei system & ckp sensor circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
G104 Engine Under Start Motor

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


2) fuel pump, injector, fuel connector & cmp sensor circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C103 (10 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C113 (16 Pin, Black) Body – Front Behind ECM Bracket
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C208 (15 Pin, White) I.P – FATC Behind Glove Box
C209 (20 Pin, Black) FATC – FATC.Aux Between Heater Core and Evaporator Core
G302 Body Below Left C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


3) mtia, sensor (ect, knock, iat, map, acp & ho2s) & power steering pressure switch circuit : eobd

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C103 (10 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C109 (4 Pin, White) Engine – Front Under Engine Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


4) mtia, sensor (ect, knock, iat, map, acp & o2) & power steering pressure switch circuit : non eobd

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C104 (24 Pin, White) Front – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics

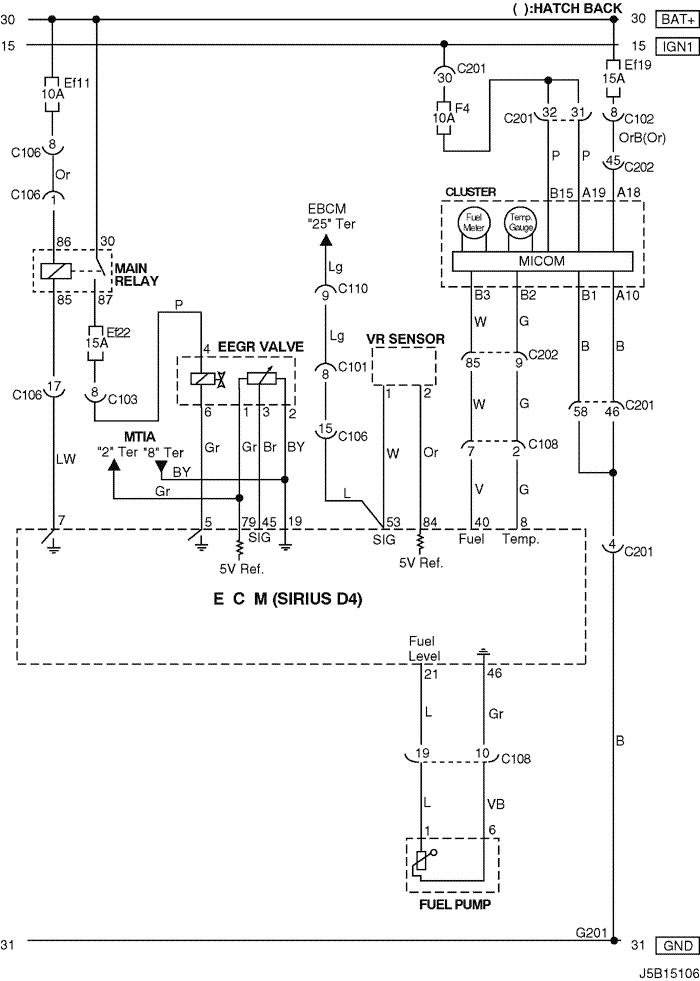

5) eegr valve, vr sensor, cluster & fuel pump circuit : eobd

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C103 (10 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C110 (12 Pin, White) ABS – Body Below Engine Fuse Block
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
G201 I.P Left I.P Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics

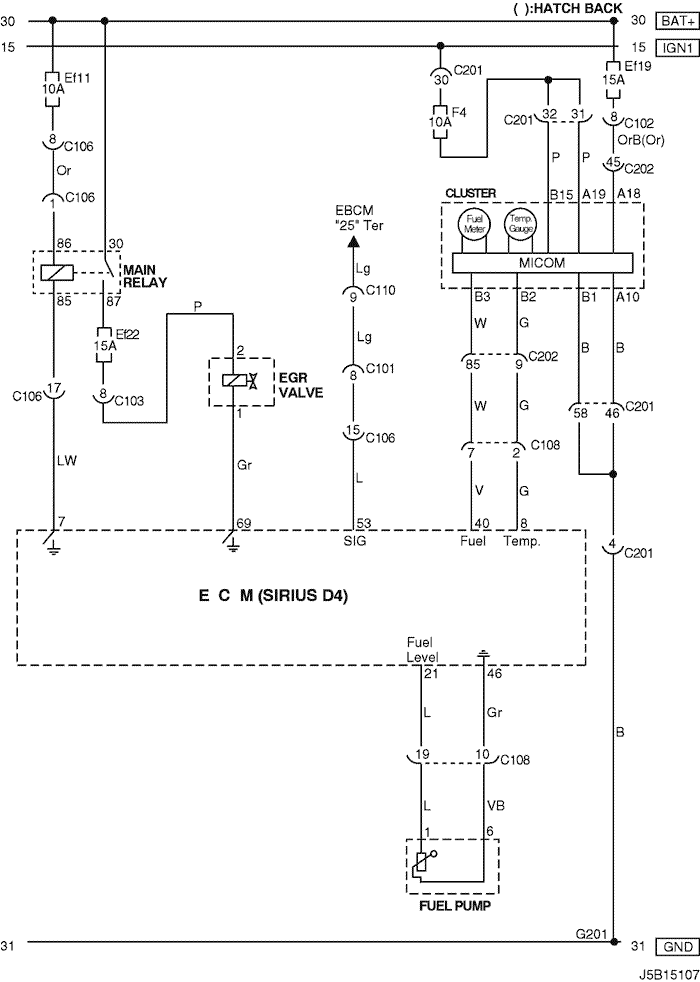

6) egr valve, cluster & fuel pump circuit : non eobd

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C101 (21 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C103 (10 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C110 (12 Pin, White) ABS – Body Below Engine Fuse Block
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
G201 I.P Left I.P Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


7) evap canister purge solenoid, vgis, cluster, vss, tcm & ron switch circuit

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C102 (11 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C103 (10 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C106 (20 Pin, White) Engine – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C206 (22 Pin, White) I.P – TCM Upper Driver Leg Room
S202 (Black) I.P Behind Cluster
G104 Engine Under Start Motor
G201 I.P Left I.P Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


d. SPLICE PACK

s202

Display graphicTranslations of text in graphics


8) dlc, mil lamp & immobilizer control circuit: w/ immobilizer

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C105 (4 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C110 (12 Pin, White) ABS – Body Below Engine Fuse Block
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C206 (22 Pin, White) I.P – TCM Upper Driver Leg Room
C207 (6 Pin, White) Air Bag – I.P Upper Left Driver Leg Room
G201 I.P Left I.P Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


9) dlc & mil lamp circuit: w/o immobilizer

Display graphicTranslations of text in graphics


a. CONNECTOR INFORMATION

connector no
(pin no, color)		connecting wiring harnessconnector position
C105 (4 Pin, White) Body – Engine Fuse Block Engine Fuse Block
C108 (24 Pin, Black) Body – Engine Left Engine Fuse Block
C110 (12 Pin, White) ABS – Body Below Engine Fuse Block
C201 (76 Pin, Black) I.P – I.P Fuse Block I.P Fuse Block
C202 (89 Pin, White) I.P – Body Left CO-Driver Leg Room
C206 (22 Pin, White) I.P – TCM Upper Driver Leg Room
C207 (6 Pin, White) Air Bag – I.P Upper Left Driver Leg Room
G201 I.P Left I.P Fuse Block

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Display graphicTranslations of text in graphics


c. POSITION OF CONNECTORS AND GROUNDS

Display graphicTranslations of text in graphics


Display graphicTranslations of text in graphics


sm
