electrical wiring diagram 2005 nubira-lacetti 19. WIPER CIRCUIT

Nubira-Lacetti

19. WIPER CIRCUIT

1) w/o rain sensor & air conditioner : notch back

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C113 (16 Pin, Black)	Body – Front	Behind ECM Bracket
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
G101	Front	Behind Left Head Lamp
G204	Body	Below Left CO-Driver Leg Room

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h instrument panel

w/h body

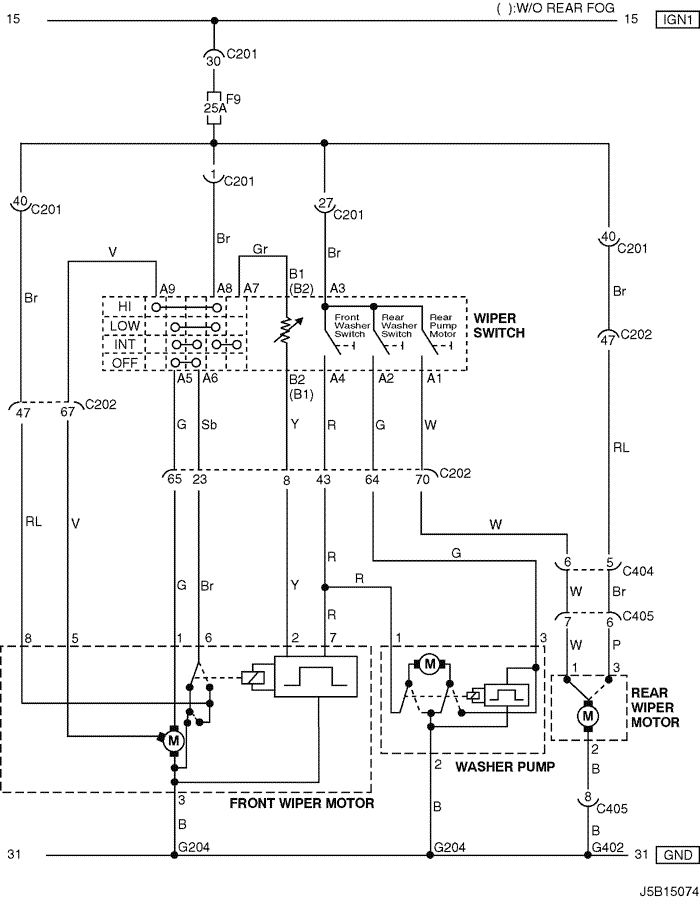

2) w/o rain sensor & air conditioner : hatch back

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C404 (8 Pin, White)	T/Gate. EXT. – Body	Inside Left C Pillar
C405 (8 Pin, White)	T/Gate. EXT. – T/Gate	Beside Left Rear Wiper Motor
G204	Body	Below Left CO-Driver Leg Room
G402	T/Gate. EXT.	Inside Driver C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h tail gate

w/h instrument panel

w/h body

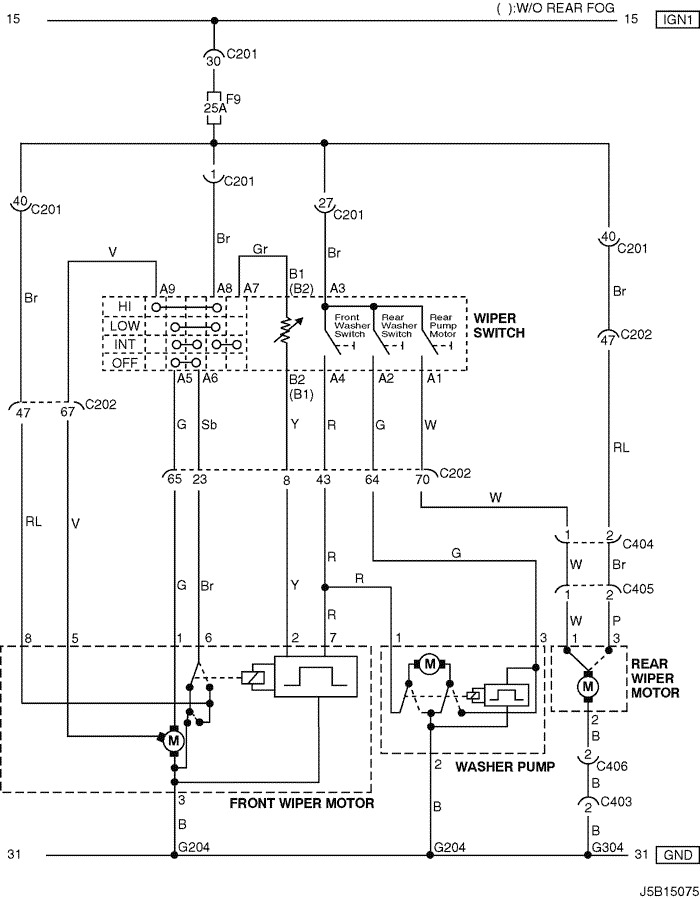

3) w/o rain sensor & air conditioner : station wagon

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C403 (4 Pin, White)	T/Gate. EXT. - Body	Inside Left C Pillar
C404 (8 Pin, White)	T/Gate. EXT. – Body	Inside Left C Pillar
C405 (8 Pin, White)	T/Gate. EXT. – T/Gate	Beside Left Rear Wiper Motor
C406 (4 Pin, White)	T/Gate. EXT. - T/Gate	Beside Left Rear Wiper Motor
G204	Body	Below Left CO-Driver Leg Room
G304	Body	Below Left Rear Combination Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h instrument panel

w/h body

4) w/ rain sensor & air conditioner : notch back

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C113 (16 Pin, Black)	Body – Front	Behind ECM Bracket
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C204 (14 Pin, White)	Roof – Body (W/ Rain Sensor)	Left CO-Driver Leg Room
C204 (8 Pin, White)	Roof – Body (W/O Rain Sensor)	Left CO-Driver Leg Room
G101	Front	Behind Left Head Lamp
G204	Body	Below Left CO-Driver Leg Room
G205	Roof	Inside CO-Driver A Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h instrument panel

w/h body

5) w/ rain sensor & air conditioner : hatch back

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C204 (14 Pin, White)	Roof – Body (W/ Rain Sensor)	Left CO-Driver Leg Room
C204 (8 Pin, White)	Roof – Body (W/O Rain Sensor)	Left CO-Driver Leg Room
C404 (8 Pin, White)	T/Gate. EXT. – Body	Inside Left C Pillar
C405 (8 Pin, White)	T/Gate. EXT. – T/Gate	Beside Left Rear Wiper Motor
G204	Body	Below Left CO-Driver Leg Room
G205	Roof	Inside CO-Driver A Pillar
G402	T/Gate. EXT.	Inside Driver C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h tail gate

w/h instrument panel

w/h body

6) w/ rain sensor & air conditioner : station wagon

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C204 (14 Pin, White)	Roof – Body (W/ Rain Sensor)	Left CO-Driver Leg Room
C204 (8 Pin, White)	Roof – Body (W/O Rain Sensor)	Left CO-Driver Leg Room
C403 (4 Pin, White)	T/Gate. EXT. - Body	Inside Left C Pillar
C404 (8 Pin, White)	T/Gate. EXT. – Body	Inside Left C Pillar
C405 (8 Pin, White)	T/Gate. EXT. – T/Gate	Beside Left Rear Wiper Motor
C406 (4 Pin, White)	T/Gate. EXT. - T/Gate	Beside Left Rear Wiper Motor
G204	Body	Below Left CO-Driver Leg Room
G205	Roof	Inside CO-Driver A Pillar
G304	Body	Below Left Rear Combination Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h instrument panel

w/h body

7) w/o rain sensor & fatc : notch back

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C113 (16 Pin, Black)	Body – Front	Behind ECM Bracket
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C208 (15 Pin, White)	I.P – FATC	Behind Glove Box
C209 (20 Pin, Black)	FATC – FATC.Aux	Between Heater Core and Evaporator Core
S204 (Magenta)	I.P	Behind Audio Mounting
G101	Front	Behind Left Head Lamp
G204	Body	Below Left CO-Driver Leg Room

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h instrument panel

d. SPLICE PACK

s204

8) w/o rain sensor & fatc : hatch back

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C208 (15 Pin, White)	I.P – FATC	Behind Glove Box
C209 (20 Pin, Black)	FATC – FATC.Aux	Between Heater Core and Evaporator Core
C404 (8 Pin, White)	T/Gate. EXT. – Body	Inside Left C Pillar
C405 (8 Pin, White)	T/Gate. EXT. – T/Gate	Beside Left Rear Wiper Motor
S204 (Magenta)	I.P	Behind Audio Mounting
G204	Body	Below Left CO-Driver Leg Room
G402	T/Gate. EXT.	Inside Driver C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h tail gate

w/h instrument panel

d. SPLICE PACK

s204

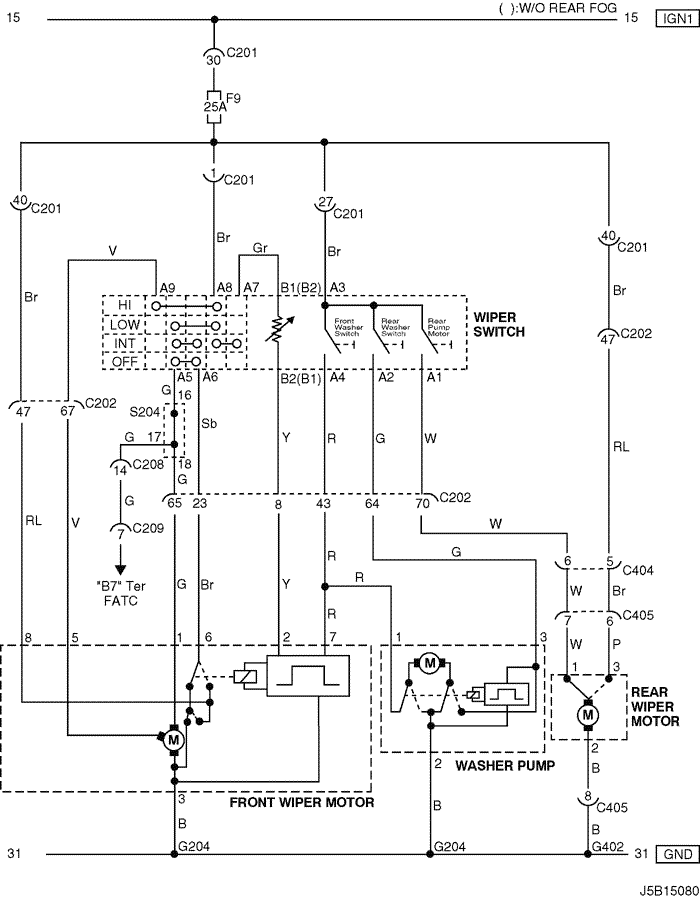

9) w/o rain sensor & fatc : station wagon

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C208 (15 Pin, White)	I.P – FATC	Behind Glove Box
C209 (20 Pin, Black)	FATC – FATC.Aux	Between Heater Core and Evaporator Core
C403 (4 Pin, White)	T/Gate. EXT. - Body	Inside Left C Pillar
C404 (8 Pin, White)	T/Gate. EXT. – Body	Inside Left C Pillar
C405 (8 Pin, White)	T/Gate. EXT. – T/Gate	Beside Left Rear Wiper Motor
C406 (4 Pin, White)	T/Gate. EXT. - T/Gate	Beside Left Rear Wiper Motor
S204 (Magenta)	I.P	Behind Audio Mounting
G204	Body	Below Left CO-Driver Leg Room
G304	Body	Below Left Rear Combination Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h instrument panel

d. SPLICE PACK

s204

10) w/ rain sensor & fatc : notch back

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C113 (16 Pin, Black)	Body – Front	Behind ECM Bracket
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C204 (14 Pin, White)	Roof – Body (W/ Rain Sensor)	Left CO-Driver Leg Room
C204 (8 Pin, White)	Roof – Body (W/O Rain Sensor)	Left CO-Driver Leg Room
C208 (15 Pin, White)	I.P – FATC	Behind Glove Box
C209 (20 Pin, Black)	FATC – FATC.Aux	Between Heater Core and Evaporator Core
S204 (Magenta)	I.P	Behind Audio Mounting
G101	Front	Behind Left Head Lamp
G204	Body	Below Left CO-Driver Leg Room
G205	Roof	Inside CO-Driver A Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h instrument panel

d. SPLICE PACK

s204

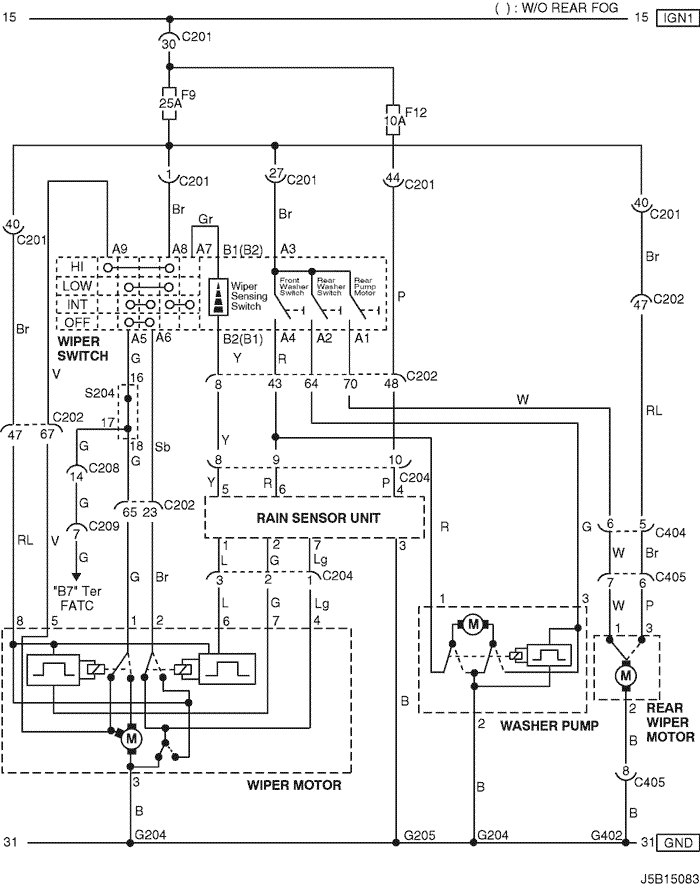

11) w/ rain sensor & fatc : hatch back

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C204 (14 Pin, White)	Roof – Body (W/ Rain Sensor)	Left CO-Driver Leg Room
C204 (8 Pin, White)	Roof – Body (W/O Rain Sensor)	Left CO-Driver Leg Room
C208 (15 Pin, White)	I.P – FATC	Behind Glove Box
C209 (20 Pin, Black)	FATC – FATC.Aux	Between Heater Core and Evaporator Core
C404 (8 Pin, White)	T/Gate. EXT. – Body	Inside Left C Pillar
C405 (8 Pin, White)	T/Gate. EXT. – T/Gate	Beside Left Rear Wiper Motor
S204 (Magenta)	I.P	Behind Audio Mounting
G204	Body	Below Left CO-Driver Leg Room
G205	Roof	Inside CO-Driver A Pillar
G402	T/Gate. EXT.	Inside Driver C Pillar

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h tail gate

w/h instrument panel

d. SPLICE PACK

s204

12) w/ rain sensor & fatc : station wagon

a. CONNECTOR INFORMATION

connector no (pin no, color)	connecting wiring harness	connector position
C201 (76 Pin, Black)	I.P – I.P Fuse Block	I.P Fuse Block
C202 (89 Pin, White)	I.P – Body	Left CO-Driver Leg Room
C204 (14 Pin, White)	Roof – Body (W/ Rain Sensor)	Left CO-Driver Leg Room
C204 (8 Pin, White)	Roof – Body (W/O Rain Sensor)	Left CO-Driver Leg Room
C208 (15 Pin, White)	I.P – FATC	Behind Glove Box
C209 (20 Pin, Black)	FATC – FATC.Aux	Between Heater Core and Evaporator Core
C403 (4 Pin, White)	T/Gate. EXT. - Body	Inside Left C Pillar
C404 (8 Pin, White)	T/Gate. EXT. – Body	Inside Left C Pillar
C405 (8 Pin, White)	T/Gate. EXT. – T/Gate	Beside Left Rear Wiper Motor
C406 (4 Pin, White)	T/Gate. EXT. - T/Gate	Beside Left Rear Wiper Motor
S204 (Magenta)	I.P	Behind Audio Mounting
G204	Body	Below Left CO-Driver Leg Room
G205	Roof	Inside CO-Driver A Pillar
G304	Body	Below Left Rear Combination Lamp

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

w/h instrument panel

d. SPLICE PACK

s204
