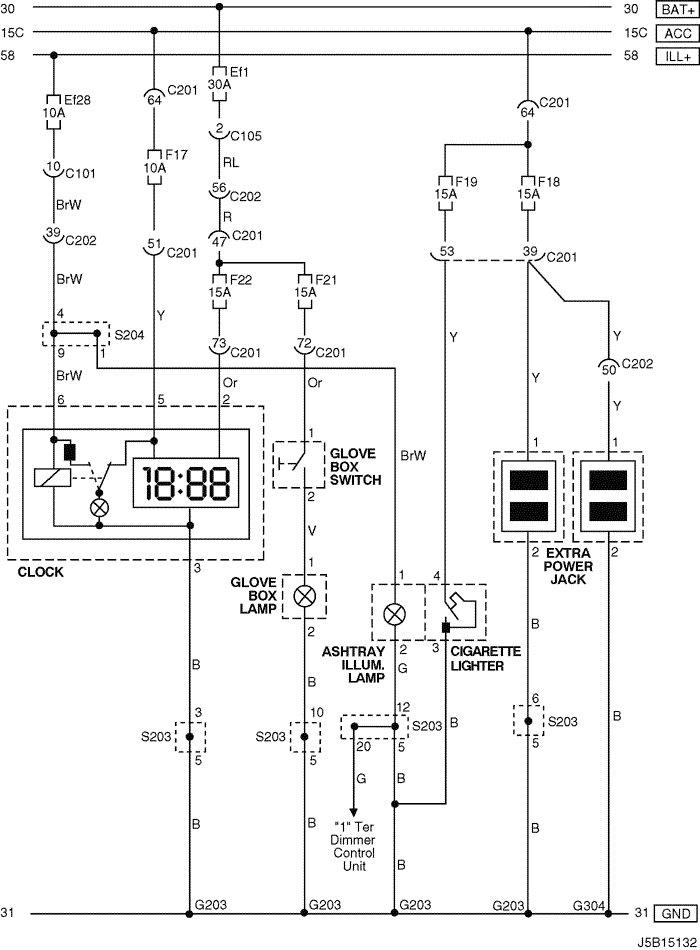

17. CLOCK, CIGAR LIGHTER, ASHTRAY ILLUM. LAMP, GLOVE BOX LAMP & EXTRA POWER JACK CIRCUIT
1) m/t: notch back, hatch back
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G203 | I.P | Behind Left Audio Bracket |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s203
s204
2) m/t: station wagon
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G203 | I.P | Behind Left Audio Bracket |
| G304 | Body | Below Left Rear Combination Lamp |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s203
s204
3) a/t: notch back, hatch back
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C302 (6 Pin, White) | I.P – Console | Below Console Box |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G203 | I.P | Behind Left Audio Bracket |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s203
s204
4) a/t: station wagon
a. CONNECTOR INFORMATION
connector no
(pin no, color) | connecting wiring harness | connector position |
| C101 (21 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C105 (4 Pin, White) | Body – Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P – I.P Fuse Block | I.P Fuse Block |
| C202 (89 Pin, White) | I.P – Body | Left CO-Driver Leg Room |
| C302 (6 Pin, White) | I.P – Console | Below Console Box |
| S203 (Red) | I.P | Behind Audio Mounting |
| S204 (Magenta) | I.P | Behind Audio Mounting |
| G203 | I.P | Behind Left Audio Bracket |
| G304 | Body | Below Left Rear Combination Lamp |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
s203
s204
